OLGA WELL KILL is a dynamic simulation
model for multiphase flow in wells. The model is especially designed for calculation of
pump rate and volume for a variety of blowout control situations.OLGA-WELL-KILL
Dynamic Multiphase Flow Simulator
for Blowout Control Engineering
OLGA WELL KILL is a dynamic simulation
model for multiphase flow in wells. The model is especially designed for calculation of
pump rate and volume for a variety of blowout control situations.
OLGA WELL KILL is developed from the state-of-the-art two-phase flow simulator OLGA. It can handle any well configuration - from single vertical wells to multilateral horizontal wells.

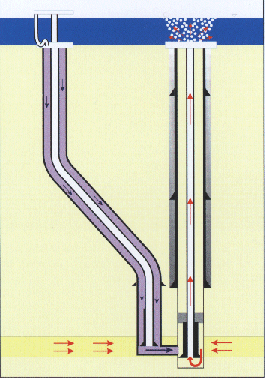

The pump path(s) can be via relief well(s), tubing, drillpipe or a combination of these, depending on the situation.
Kill options
OLGA WELL KILL was designed for planning and evaluation of kill intervention options. The model can be used to analyse blowout flow, kill point, pumping schedule, casing design, kill fluid properties and volumes, temperature, pressure and other related parameters. The results may be presented versus time for a complete dynamic and volumetric response.
Applications
The model is installed on a portable PC, and assistance is available on-site world wide for blowout kill planning and control situations through Well Flow Dynamics AS. Experience has been gained world wide on several large and small blowouts, which has verified the accuracy and flexibility of the modelling process.
Well
kill applications:
Dynamic kill simulations for relief well kill.
Top kill simulations for underground or diverted blowouts, via existing or snubbed pipe.
Bull head kill analysis
Momentum kill analysis
Shallow gas and water flow
Production applications:
Well production transients
Production and injection flow characterization
Multi-lateral Horizontal well flow
Underbalanced drilling
Water alternating gas injection
Transient well test analysis
OLGA-WELL-KlLL features that are unique for well kill applications include:
State-of-the-art multiphase flow technology
Advanced controller system, to match actual pumping operations
High pressure pump models
Oil and gas properties fully modelled
Pressure and temperature effects on kill fluids
Non-Newtonian and critical flow conditions
Any kill fluid: mud, water, brine etc.
Flow through bit-nozzles, obstructions and leaks
Friction loss through tool joints.
All reservoir inflow models can be used
Graphical interface

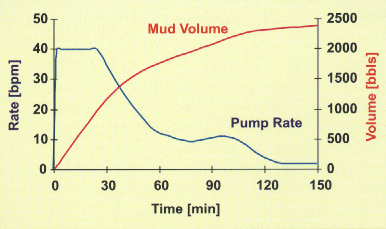

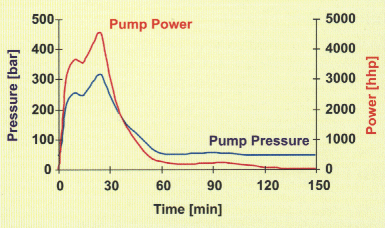

The results from OLGA WELL KILL will typically provide:
Fully dynamic simulations of the kill operation with:
Blowout rates
Pump rates
Cumulative volumes
Hydraulic horse power requirements
Pressures
Temperatures
Parameters can be displayed versus time at any point in the well(s).
Calculation of necessary kill fluid rates, time and volumes to obtain dynamic and static
kill.
Sensitivity analysis of different kill fluids; water, brine or mud with different
densities and viscosities.
Click here for additional information on OLGA-Well-Kill applications.
