Earth Magnetic Field Measurements

Zeiss Mag 02B Theodolite
& Fluxgate Magnetometer

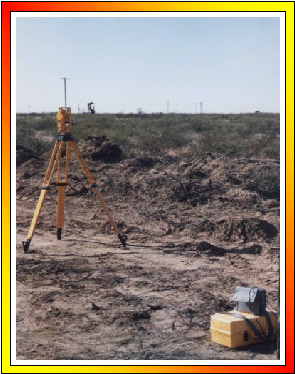

Theodolite with Tripod and
Magnetometer Readout

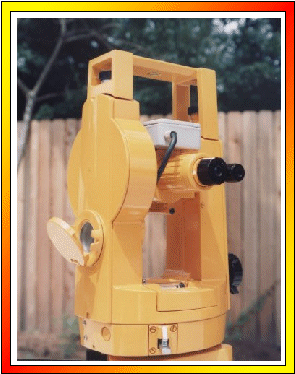

This surveying theodolite with magnetometer
mounted on top of scope is magnetic free

These three components comprise this easily
shipped system to any onshore location

dddd

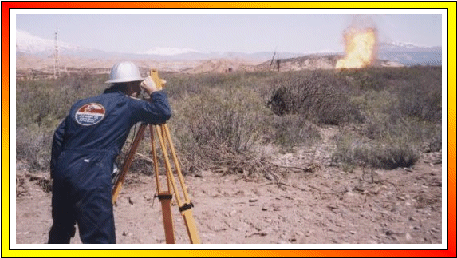

  Operation of Equipment by Engineer On Blowout Site

After alignment along a "baseline" established by the professional surveyor,  then real-time monitoring is performed and the field components calculated
